640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

Brand Name : Conwin LED Display

Model Number : MI-V1.5

Certification : CE-EMC, CE-LVD, RoHS, ETL, FCC

Place of Origin : China

MOQ : 1sqm

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 1,000sqm/month

Delivery Time : 15 days

Packaging Details : Wooden box

Pixel Pitch : P1.538mm

Material : Die-casting Aluminum

Size : 640X480mm

Depth : 70mm

Weight : 8kg

System : Nova

Contact Now

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

Application:

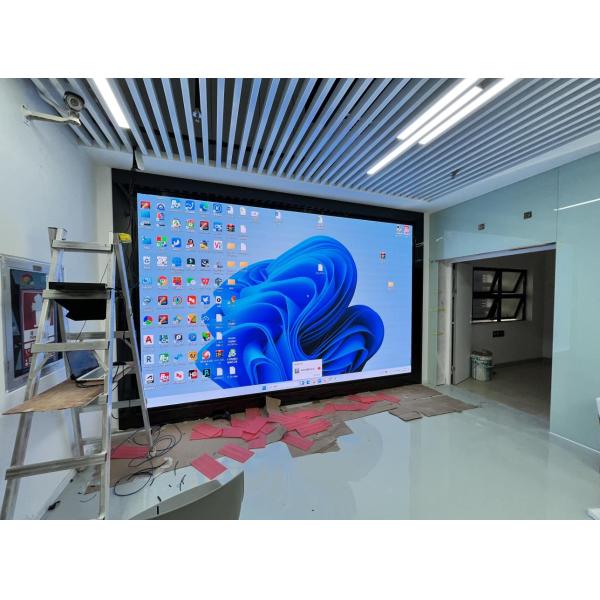

MI-V sereis(MI-V1.5) P1.538mm 640X480mm 2K 4K HD LED Display widely using in indoor high end places, such as hotels, conference room, stage, public security, malls and other fields.

Features and Advantages:

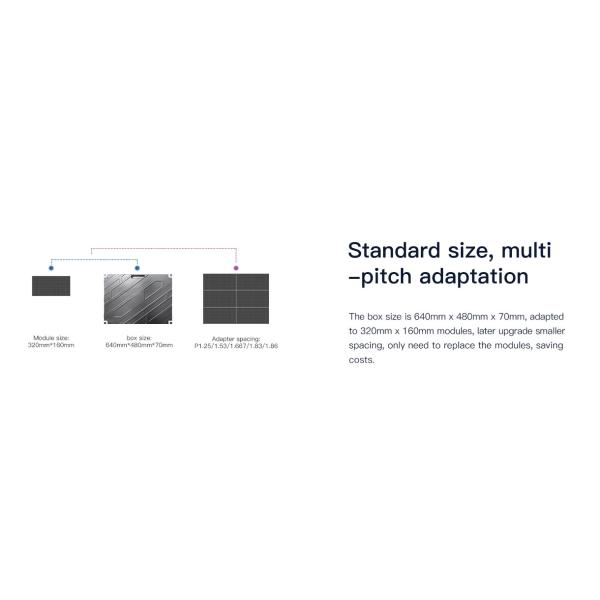

- Standard cabinet size 640X480mm with ratio 4:3

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

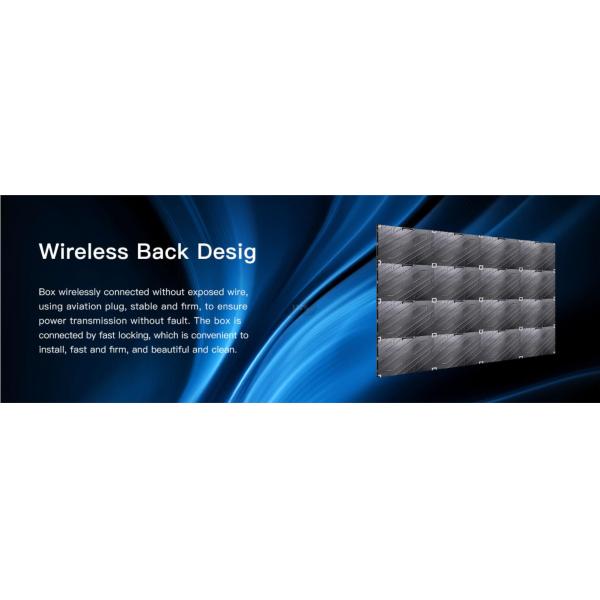

- Wireless Design

Cabinet connection with fast lock, convenient to install. Keep high flatness

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

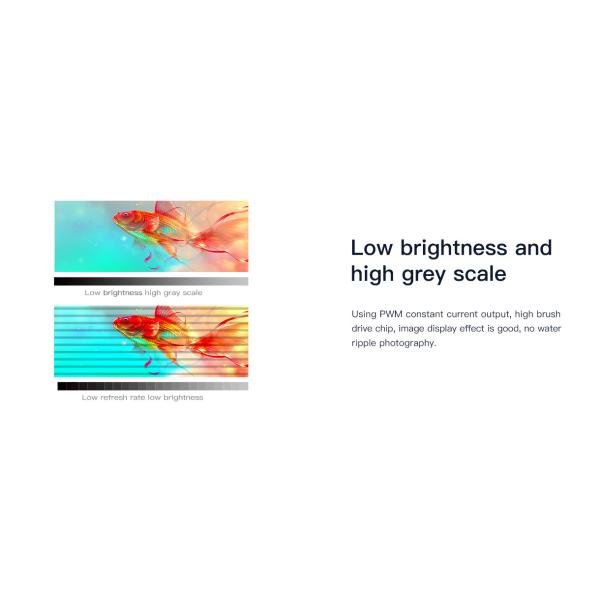

- High Grey scale

Grey scale could do reach 16bits

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

- High quality LED lamp choosing

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

Parameters:

Pixel pitch mm 1.538
Brightness nits 500
Viewing angle - Horizontal deg. 160(+80/-80)
Viewing angle - Vertical deg. 160(+80/-80)
Cabinet weight kg 8
Cabinet width mm 640
Cabinet height mm 480
Cabinet depth mm 70
Cabinet material Die-casting Aluminum
Operating temperature range deg. C -20 to 60
Operating humidity range HR 10％ to 85％
Pixel type and configuration R/G/B SMD1010
Pixel matrix per cabinet dots 416X312
LED module size(WXH) mm 320X160
Module resolution(WXH) dots 208X104
Gray scale Levels 65536 levels per colour
Brightness control Levels 100
Frame rate Hertz 60
Display refresh rate Hertz 3840
Input voltage VAC 110/240
Input power frequency Hertz 50/60
Power (max/avg) Watts per sq.m 400/150
Grey scale level bits 16

Pictures:

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel

640X480mm 2K 4K HD LED Display Front Access Aluminum P1.5 LED Panel
